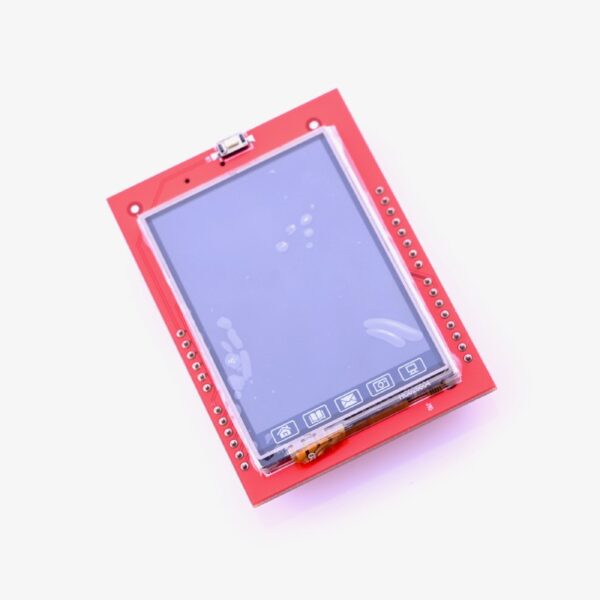

2.4 Inch TFT Touchscreen LCD Display for Arduino Uno

This 2.4″ TFT LCD display module will add up as an awesome display for your Arduino Projects. It can display 240×320 coloured pixels and also has touch screen functionality. The LCD fits directly on top of Arduino UNO as a shield, it is powered by the 3.3V pin on Arduino and communicates through SPI protocol.

It is easy to display contents, graphics or even bitmap images on this LCD using the pre-built library for Arduino. It has the 74LVX245 as the display driver IC, hence can be used with other microcontrollers as well.

Note: Product may be differ from the picture shown here.

Pin Configuration

Features and Specifications:

• 4 inch LCD TFT display
• Bright, 4 white-LED backlights, on by default but you can connect the transistor to a digital pin for backlight control
• Colorful, 18-bit 262,000 different shades
• 4-wire resistive touchscreen
• 240 x 320 resolution
• Spfd5408 controller with built-in video RAM buffer
• 8-bit digital interface, plus 4 control lines
• Uses digital pins 5-13 and analog 0-3. That means you can use digital pins 2, 3 and analog 4 and 5. Pin 12 is available if not using the micro SD
• 5V compatible, use with 3.3V or 5V logic
• Size: 71 x 52 x 7mm

Additional Resources:

TFT Display Datasheet

Arduino 2.4″ Touch Screen LCD Shield Tutorial

Package Includes:

1 x LCD Touchscreen 2.4 inch
