74HC373 Octal D-Type Latch 3-State Outputs IC – SOIC-20 SMD Package

The 74HC373 is a high-speed CMOS octal D-type latch IC with 3-state outputs. It is designed for temporary data storage and transfer in digital systems, providing eight latches that can store and hold data until it is needed. The IC is commonly used in applications where data needs to be held or temporarily buffered, such as in microcontroller interfaces and memory address latching. The 74HC373 is available in a SOIC-20 SMD package, making it suitable for compact and high-density PCB layouts.

Features

• Octal D-Type Latches: Contains eight latches, each capable of storing a single bit of data, ideal for holding and transferring data in digital systems.
• 3-State Outputs: Features 3-state output control, allowing the outputs to be set to a high-impedance state, making it ideal for bus-oriented applications.
• High-Speed Operation: Capable of high-speed data latching, ensuring quick and reliable performance in fast digital circuits.
• Transparent Latch Operation: Data at the inputs is transferred to the outputs when the latch enable (LE) input is high, and the outputs retain the data when LE is low.
• Direct Output Control: Includes an output enable (OE) input to control the state of the outputs independently of the data.
• SOIC-20 SMD Package: Compact surface-mount package for easy integration into space-constrained PCB designs.

Specifications

• Supply Voltage: 2V to 6V
• Input Voltage: 0V to Vcc
• Output Voltage: 0V to Vcc
• Maximum Propagation Delay: 15 ns typical at Vcc = 5V
• Output Current: ±25 mA per pin
• Operating Temperature: -40°C to +85°C
• Package Type: SOIC-20 (Small Outline Integrated Circuit)
• Pin Count: 20

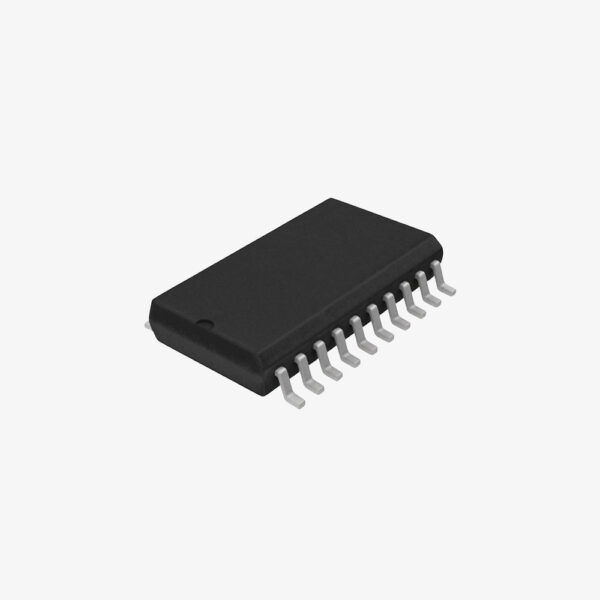

Note: Product images are for illustrative purposes only and may differ from the actual product.
