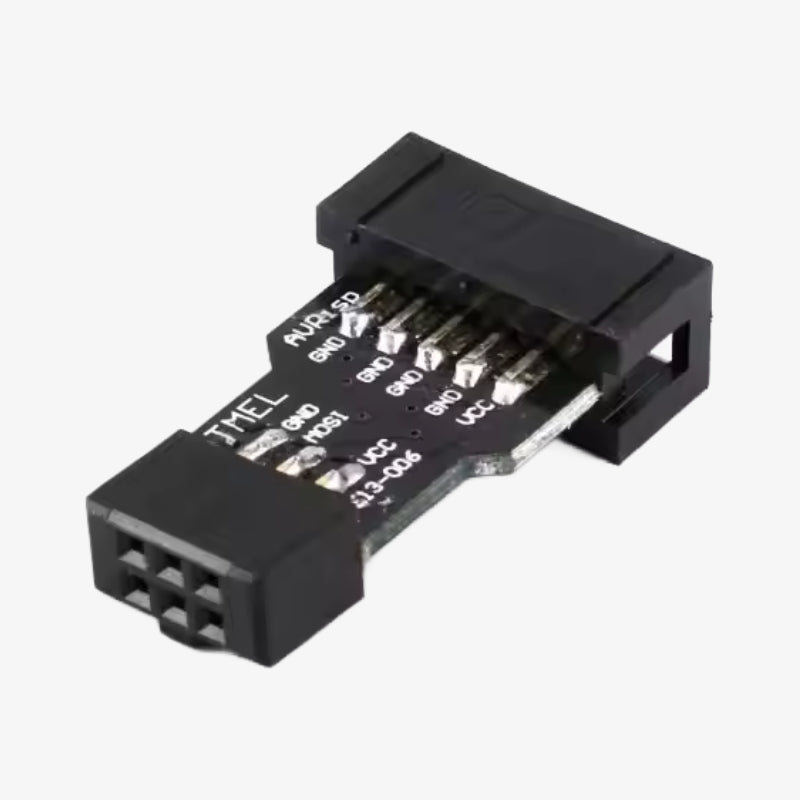

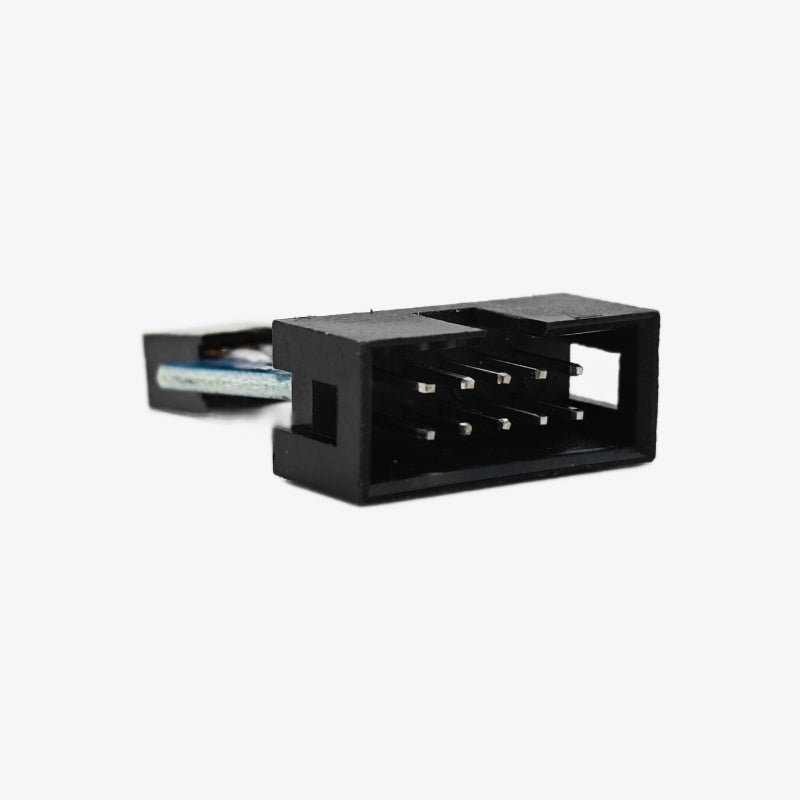

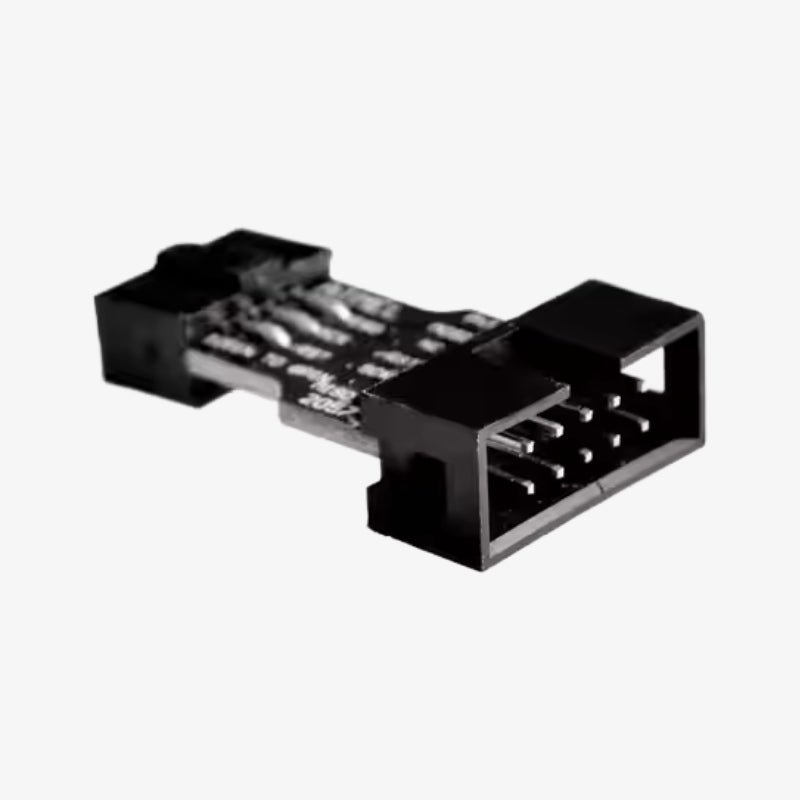

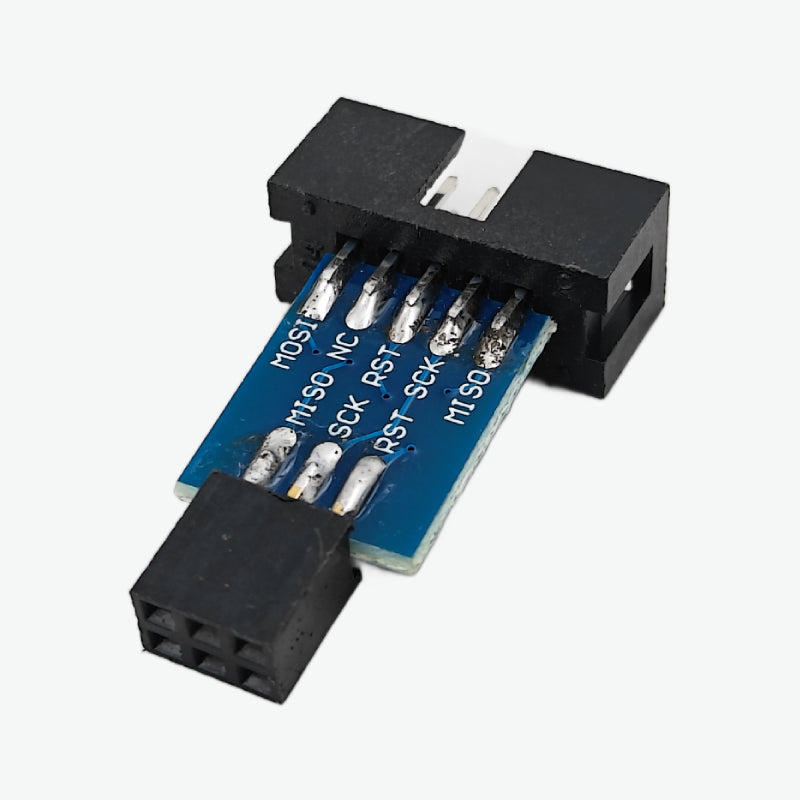

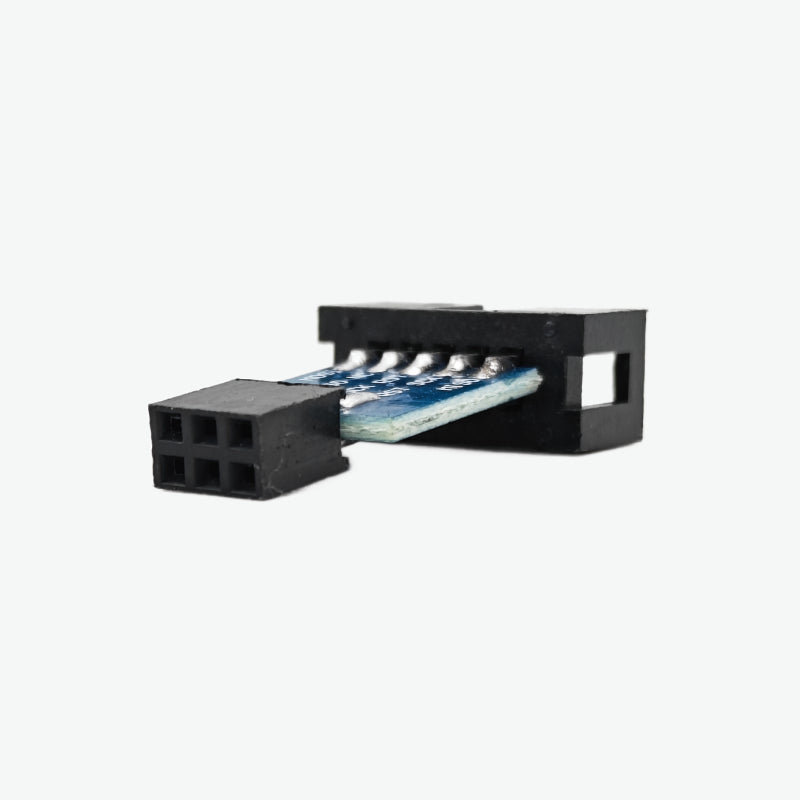

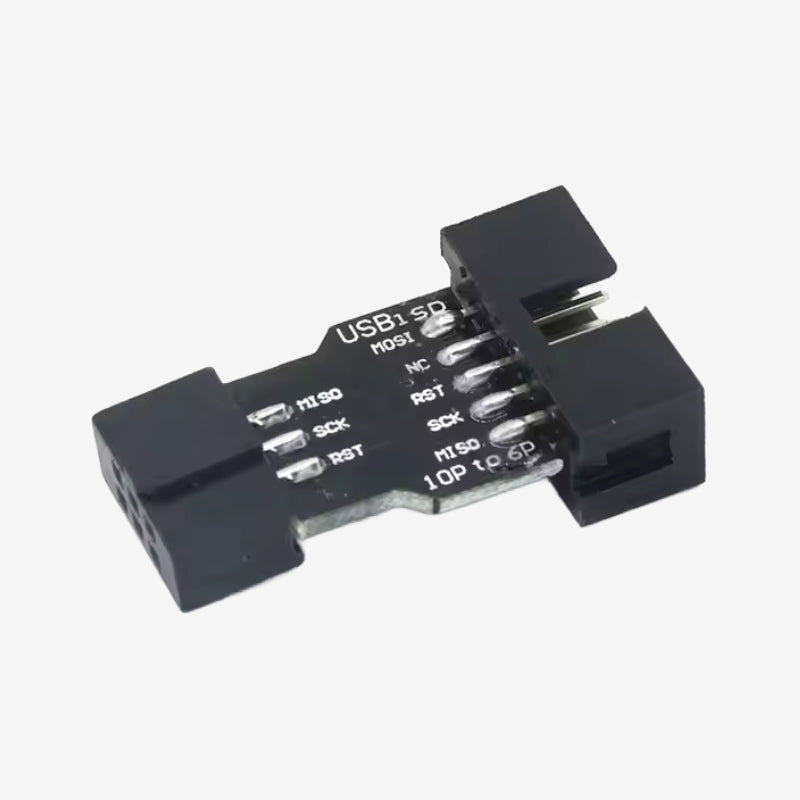

The AVR ISP 10 Pin to 6 Pin Adapter Board is designed to convert the standard 10-pin AVR ISP programming interface to the more compact 6-pin interface. It is commonly used with AVR microcontrollers and supports in-system programming using tools like USBasp or USBtinyISP. This board allows easy connection between older or larger ISP programmers and smaller AVR development boards or target devices.
Features of AVR ISP 10 Pin to 6 Pin Adapter Board:
- Converts 10-pin ISP to 6-pin ISP for AVR microcontrollers
- Compatible with USBasp, USBtinyISP, and other standard AVR programmers
- Helps interface old-style programmers with modern boards
- Plug-and-play adapter with standard pin mapping
- Compact and durable PCB design
- Ideal for ATmega and ATtiny series microcontroller development
Specifications of AVR ISP 10 Pin to 6 Pin Adapter Board:
- Input: 10-pin ISP interface
- Output: 6-pin ISP interface
- Compatibility: Supports standard AVR ISP programming pinout
- Board Type: Double-sided PCB
- Mounting: Through-hole header pins
Package Includes:
1 x AVR ISP 10 Pin to 6 Pin Adapter Board
