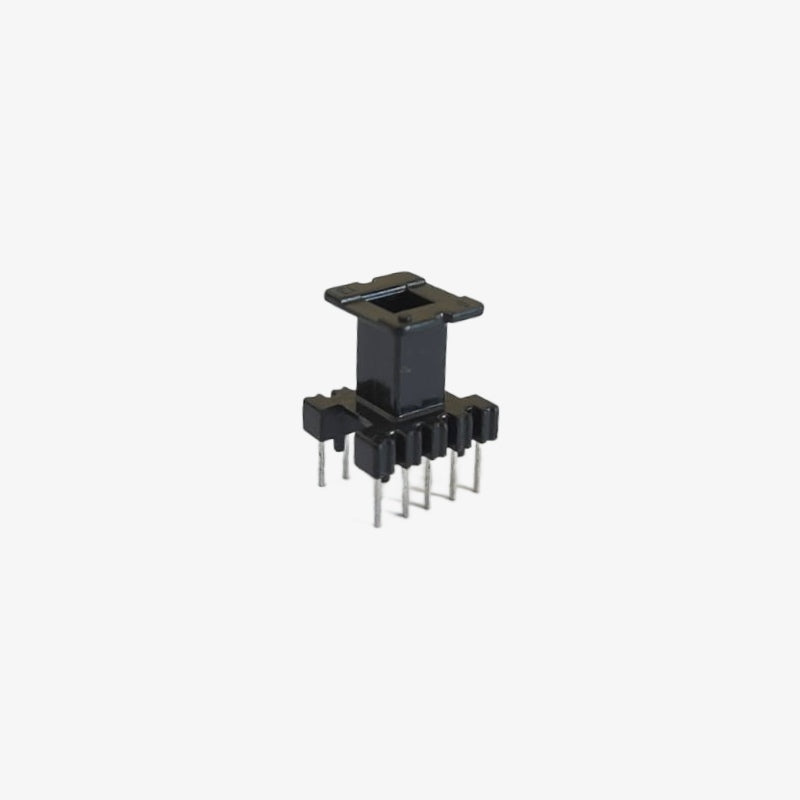

EE16 Transformer Vertical Bobbin 10 Pin

The EE16 Transformer Vertical Bobbin with 10 pins is engineered for use with EE16 ferrite cores in high-frequency transformers and inductors. Featuring a vertical design, this bobbin is ideal for applications requiring an upright transformer configuration, providing excellent winding efficiency and ease of assembly. Its compact design makes it suitable for power supplies, converters, and other high-frequency circuits in compact electronic devices.

Features:

• Vertical bobbin design for upright transformer assembly
• 10-pin configuration for organized and efficient coil winding
• Made from durable, heat-resistant plastic for reliable long-term performance
• Ideal for use with EE16 ferrite cores in high-frequency applications
• Simplifies winding and assembly processes, enhancing productivity

Applications:

• Switched-mode power supplies (SMPS)
• High-frequency transformers and inductors
• Power converters and adapters
• Consumer electronics and industrial equipment
• Custom transformer and inductor designs

Specifications:

• Bobbin Type: EE16
• Pin Count: 10
• Mounting Style: Vertical
• Material: High-quality, heat-resistant plastic
• Core Compatibility: EE16 ferrite cores
