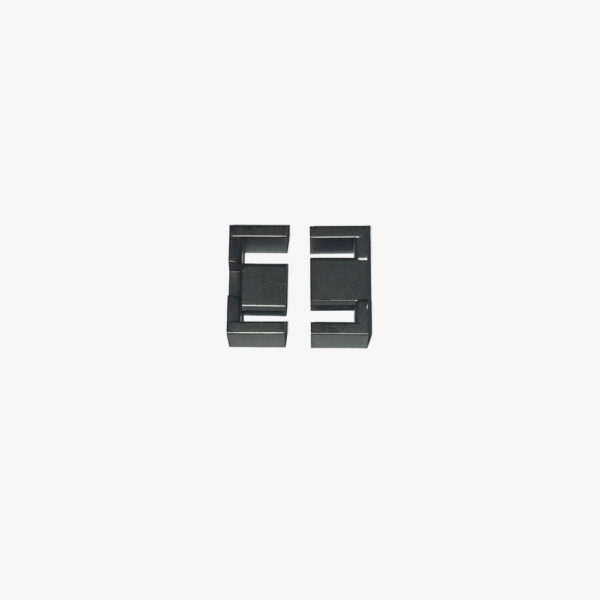

EF20/10/6 PC44 Ferrite Core Transformer Cores (Pair)

The EF20/10/6 PC44 OL Ferrite Core Transformer Cores are high-performance cores made from PC44 material, designed for efficient magnetic performance in high-frequency applications. These ferrite cores are ideal for use in power transformers, inductors, and other electromagnetic components in switched-mode power supplies (SMPS), inverters, and other high-frequency circuits. The EE shape offers optimized winding space and minimal leakage inductance, enhancing the performance of transformers in compact and high-power designs.

Features:

• Made from high-quality PC44 ferrite material for optimal magnetic properties
• EE core design for efficient winding and reduced leakage inductance
• Excellent performance in high-frequency applications
• Low core loss and high saturation flux density
• Suitable for transformers in SMPS, inverters, and high-power converters

Applications:

• Switched-mode power supplies (SMPS)
• High-frequency power transformers
• Inverters and converters
• Industrial power electronics
• Inductors and other magnetic components

Specifications:

• Core Type: EF20/10/6
• Material: PC44 Ferrite
• Outer Dimensions: 20mm x 10mm x 6mm
• Frequency Range: Suitable for high-frequency applications

Package Includes:

2 x EF20/10/6 PC44 Ferrite Core Transformer Core
