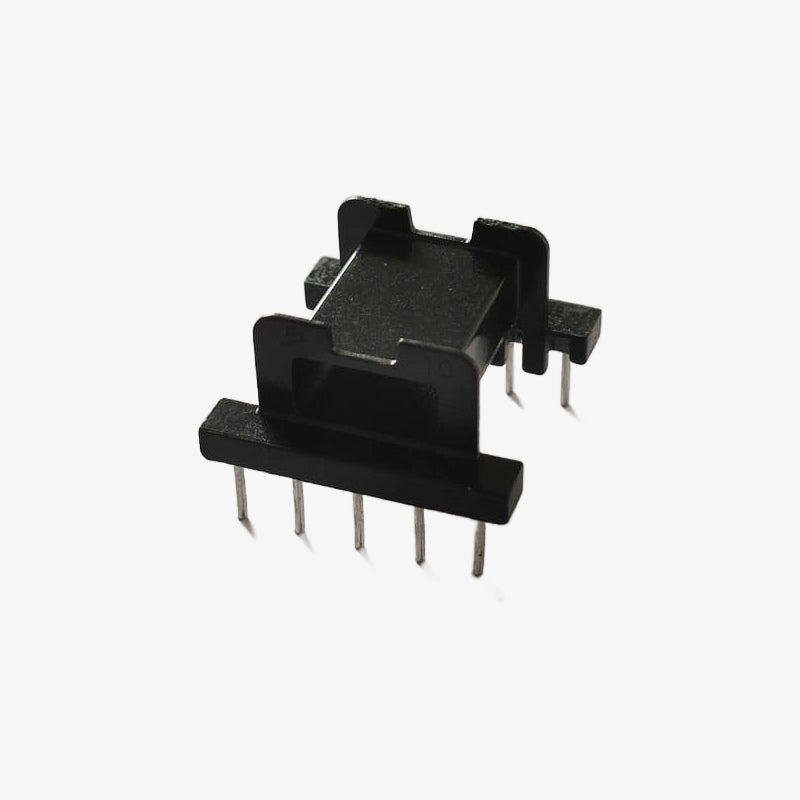

EFD25 Transformer Bobbin – Horizontal 10 Pin

The EF25 Transformer Horizontal Bobbin (10 Pin) is designed for compact, high-frequency transformers, particularly in applications such as switch-mode power supplies (SMPS) and DC-DC converters. The horizontal configuration allows for a low-profile design, ideal for space-constrained applications. With 10 pins available, this bobbin supports flexible winding configurations, making it a reliable component in efficient transformer design.

Features:

• Pin Configuration: 10 pins for adaptable winding connections, allowing greater flexibility in transformer design.
• Horizontal Design: Space-saving, low-profile horizontal structure for applications with height restrictions.
• High-Quality Material: Constructed from durable, thermally stable thermoplastic, providing excellent electrical insulation.
• Compact Winding: Optimized for efficient coil winding, supporting compact transformer designs without compromising performance.
• Mounting Type: Through-hole mounting for easy and secure installation on PCBs.
• Heat Resistance: Capable of withstanding high temperatures, suitable for high-frequency, high-power applications.

Specifications:

• Core Type: EF25
• Pin Count: 10
• Material: UL94-V0 rated thermoplastic for enhanced insulation and fire resistance.
• Operating Temperature: -40°C to +125°C
• Mounting Type: Through-hole
• Dimensions: Standard EF25 dimensions (refer to datasheet for detailed measurements)
• Applications: Perfect for use in SMPS transformers, DC-DC converters, and other high-frequency applications where space and efficiency are crucial.
