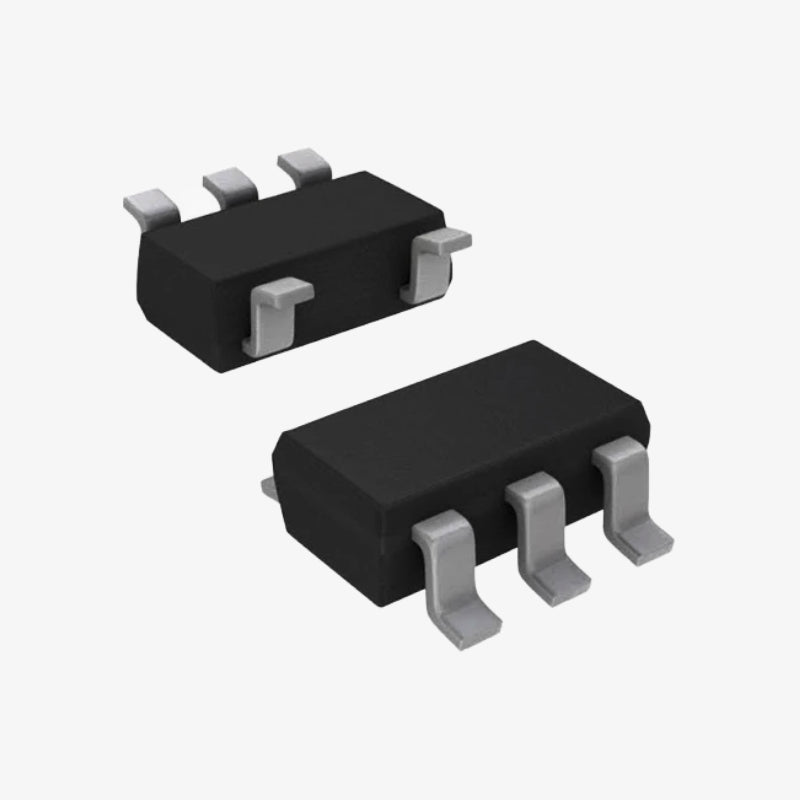

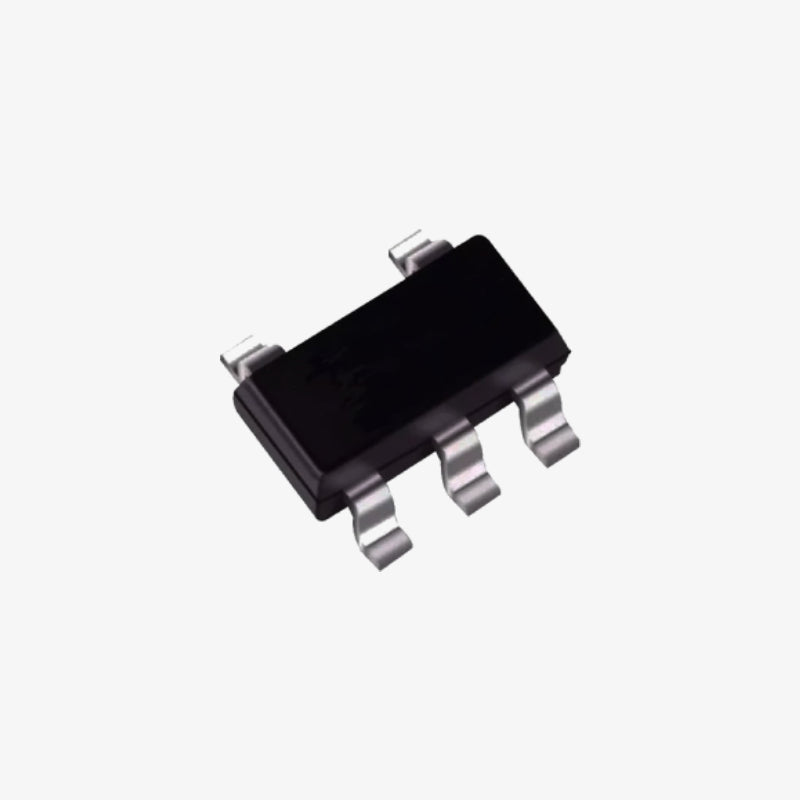

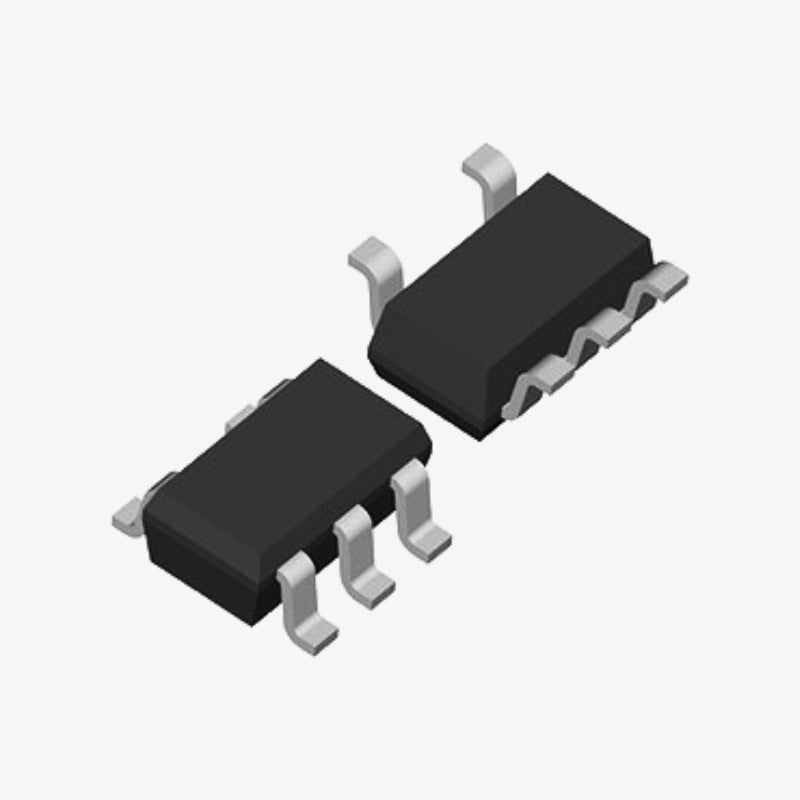

HT7833 500mA Low Dropout Linear Voltage Regulator IC – SOT-23-5 SMD Package

The HT7833 is a high-performance low dropout (LDO) linear voltage regulator IC designed to provide a stable 3.3V output from input voltages up to 6V. With a maximum output current of 500mA, this regulator offers low quiescent current and excellent line and load regulation. The HT7833 is widely used in battery-powered devices, microcontroller circuits, portable electronics, and IoT applications where compact size and high efficiency are essential.

Features of HT7833 Voltage Regulator IC:

1. Fixed output voltage of 3.3V
2. Supports output current up to 500mA
3. Low dropout voltage: 250mV @ 500mA
4. Low quiescent current for energy-efficient operation
5. Built-in current limit and thermal protection
6. Compact SOT-23-5 SMD package
7. Ideal for portable devices, IoT, and microcontroller-based circuits

Specifications of HT7833 Voltage Regulator IC:

• Model: HT7833
• Input Voltage Range: 2.5V to 6V
• Output Voltage: 3.3V fixed
• Output Current: Up to 500mA
• Dropout Voltage: ~250mV @ 500mA load
• Quiescent Current: <2µA (typical)
• Protections: Overcurrent and thermal shutdown
• Package: SOT-23-5 – SMD
• Operating Temperature: -40°C to +85°C

Package Includes:

1 × HT7833 Linear Voltage Regulator IC – 3.3V – 500mA – SOT-23-5 – SMD
