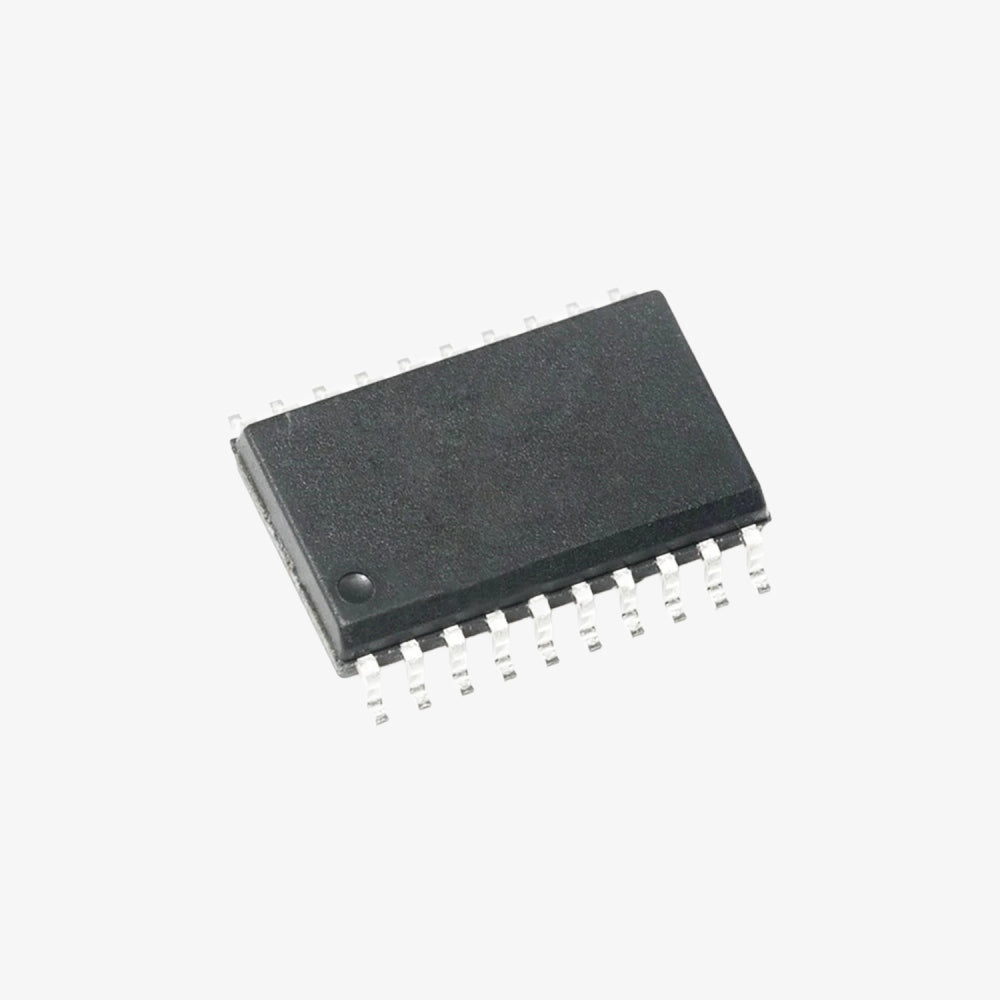

L6205 DMOS Dual Full Bridge Driver IC (ST) – SOP-20 SMD Package

The L6205 is a DMOS dual full bridge driver IC designed for motor control applications. It is housed in a SOP-20 surface-mount device (SMD) package, making it suitable for high-density circuit board layouts. Here’s a detailed description of the product:

Key Features:

• Type: DMOS Dual Full Bridge Driver
• Package: SOP-20 (Surface Mount Device)
• Operating Voltage: 8V to 52V
• Maximum Output Current: 2.8A per bridge
• Rds(on): 0.3Ω (typical) per bridge
• PWM Control: Supports pulse width modulation (PWM) for efficient motor speed control
• Thermal Shutdown: Protects the IC from overheating
• Overcurrent Protection: Protects against excessive current draw
• Cross Conduction Protection: Prevents simultaneous conduction of high-side and low-side switches
• Brand: ST

Applications:

• Motor Control: Ideal for driving DC and stepper motors
• Robotics: Suitable for robotic motor control applications
• Industrial Automation: Used in automated machinery requiring motor control
• Consumer Electronics: Controls motors in consumer electronic devices
• Automotive: Suitable for automotive motor control applications

Pin Configuration:

• Pin 1: IN1A – Input for bridge A
• Pin 2: IN2A – Input for bridge A
• Pin 3: ENA – Enable for bridge A
• Pin 4: SENSEA – Sense resistor for bridge A
• Pin 5: OUT1A – Output 1 for bridge A
• Pin 6: OUT2A – Output 2 for bridge A
• Pin 7: VSA – Supply voltage for bridge A
• Pin 8: PGND – Power ground
• Pin 9: ENB – Enable for bridge B
• Pin 10: SENSEB – Sense resistor for bridge B
• Pin 11: OUT1B – Output 1 for bridge B
• Pin 12: OUT2B – Output 2 for bridge B
• Pin 13: VSB – Supply voltage for bridge B
• Pin 14: PGND – Power ground
• Pin 15: IN1B – Input for bridge B
• Pin 16: IN2B – Input for bridge B
• Pin 17: VBOOT – Bootstrap voltage
• Pin 18: VCC – Logic supply voltage
• Pin 19: GND – Logic ground
• Pin 20: DIAG – Diagnostic output

Electrical Characteristics:

• Supply Voltage (Vcc): 8V to 52V
• Output Current (Iout): 2.8A max per bridge
• Rds(on): 0.3Ω typical per bridge
• Logic Input Voltage: 2.5V to 5V
• PWM Frequency: Up to 100kHz
• Thermal Shutdown Threshold: 150°C typical
• Overcurrent Protection Threshold: 5.6A typical

Note: Product images are for illustrative purposes only and may differ from the actual product.
