Transistors
PMBT2907A 60V, 600 mA, (SMD SOT-23 Package) PNP switching transistor – Pack Of 5 Pieces
Availability:
527 in stock
₹12.00
527 in stock

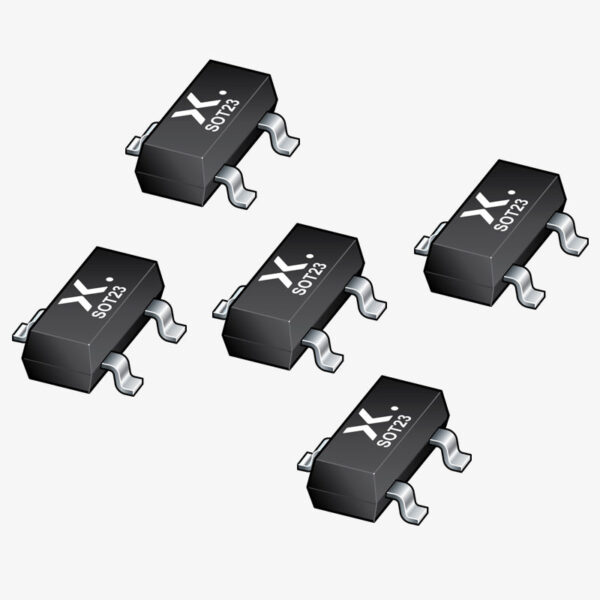

PNP switching transistor in a small SOT23 (TO-236AB) Surface-Mounted Device (SMD) plastic package.
NPN complement: PMBT2222A
40V variant: PMBT2907
Features and benefits :
- Single general-purpose switching transistor
- AEC-Q101 qualified
Applications :
- Switching and linear amplification
Specifications :
| Type number | Package version | Size (mm) | Polarity | Ptot (mW) | VCEO [max] (V) | IC [max] (mA) | hFE [min] | hFE [max] | fT [min] (MHz) | Automotive qualified |
|---|---|---|---|---|---|---|---|---|---|---|
| PMBT2907A | SOT23 | 2.9 x 1.3 x 1 | PNP | 250 | -60 | -600 | 75 | 300 | 200 | Y |
Datasheet :
PMBT2907A 60V, 600 mA, (SMD SOT-23 Package) Datasheet
Package Includes :
1 x 5 Piece of PMBT2907A (SMD SOT-23 Package) PNP switching transistor
