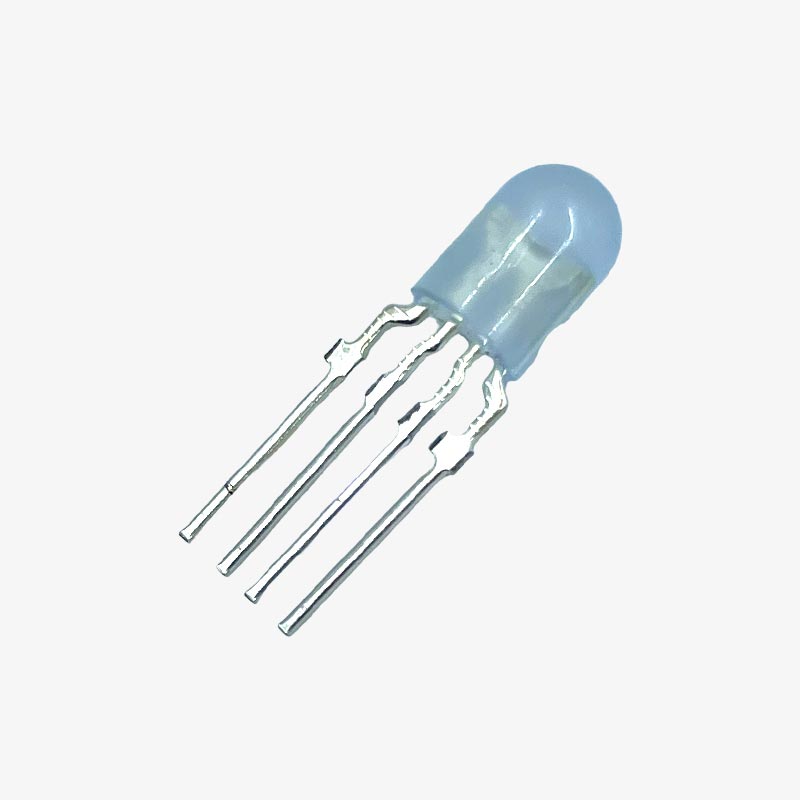

This is a RGB LED with 4 pins of 5 mm package, Diffused type and oval shape.
Features:
- High Brightness
- Low Current Consumption
- Large Operating Voltage Range
- Wide Operating Conditions
- Color: Red, Green & Blue
Specifications of RGB LED:
- Ideal for Multicolor displays
- Low current consumption
- 5mm diameter
- LED Type : Water Clear/ Diffused
- View Angle: Water Clear 360 degrees; Diffused 250 degrees
- Luminous Flux :4-5LM
- Operating Temperature is -24 – 85 °C
- Wavelength :- RED : 625nm; Green: 520nm; Blue: 467nm
- Forward Current :- Red: 20 mA; Green: 20 mA; Blue: 20 mA
- Forward Voltage :- Red: 1.8V – 2.2V; Green: 3.0V – 3.4V; Blue: 3.0 V – 3.4V
- Luminous intensity :- Red: 800 mcd; Green: 4000 mcd; Blue: 900 mcd
- To prolong the lifespan of the LED, the input current should be below 20mA.
Package Includes:
1pc of RGB LED – 5mm.
