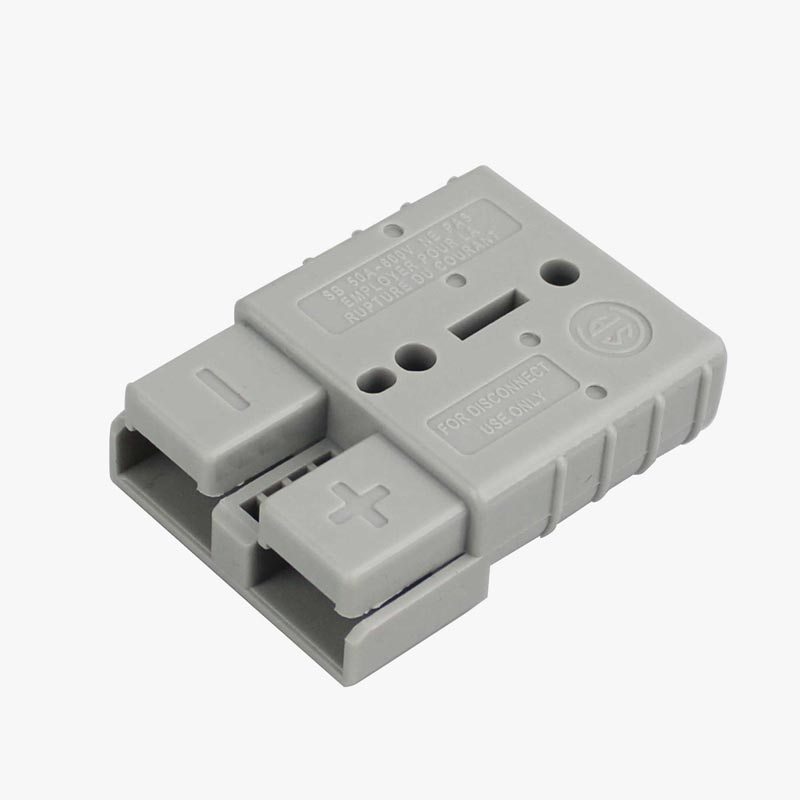

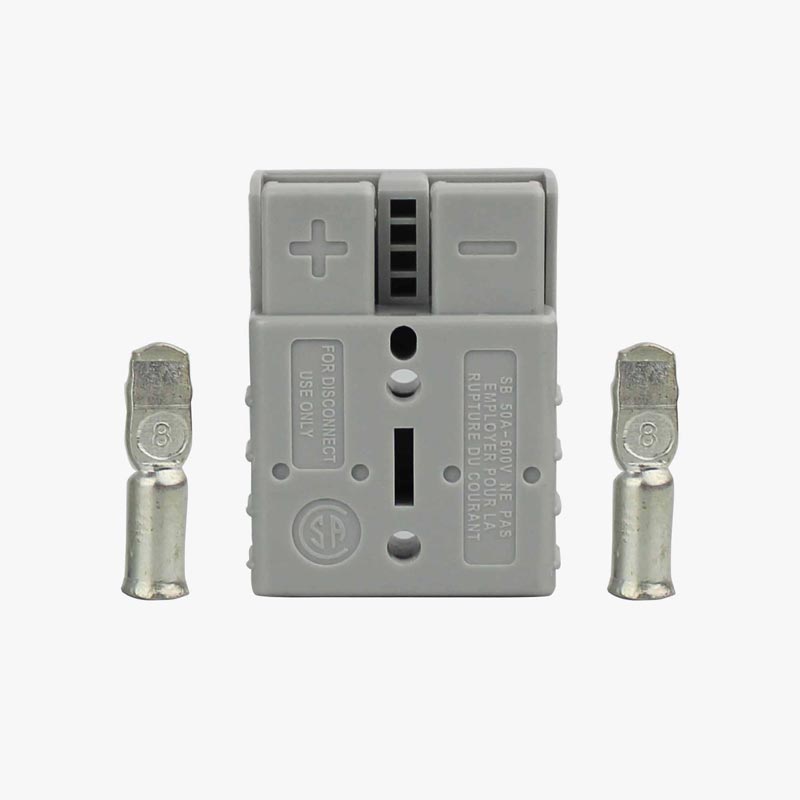

SB50 Anderson Connector Set – 600V and 50A – Grey Connector

SB50 Anderson connector is commonly used in Battery Packs and Solar Chargers. It is a high current connector commonly used to charger EV battery packs and other high current charging applications.

Specifications:

• Housing Material : Polycarbonate / PBT blend
• Contact material : Pure copper silver plating
• Color : Grey
• Wire Size Range : 16 to 8 (AWG)
• Size : 35.1x48x15.9 mm
• Rated current : 50 A
• Rated voltage : 600 V
• Vibration resistance : Excellent
• Operating Temperature : -20°C ~ 105°C
