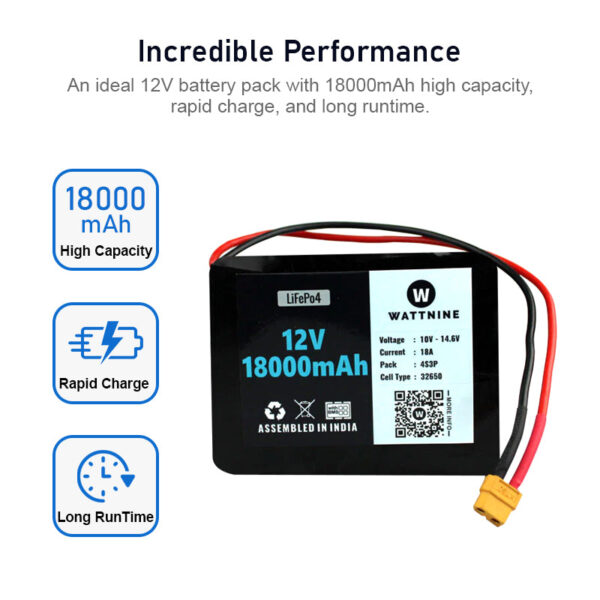

This is a 12.8V 18Ah Lithium LFP battery pack, built using LiFePo4 32650 cells. The pack has an in-built protection circuit and uses high quality cells and design to provide long life and best performance.
Recommended Charger – Charging Time
- 14.6v 3A LiFePo4/LFP Charger – 6Hrs.
- 14.6v 5A LiFePo4/LFP Battery Charger – 3Hr 30min.
Specification
- Operating Voltage Range: 9.2V to 14.4V
- Nominal Pack Voltage- 12.8V
- Continuous Discharge Current- 18A (18,000 mAh)
- Max Discharge Current – 18A
- Charging Voltage- 14.4V
- Charging Current- 9A
Protection (Included BMS)
- Short Circuit Protection
- Overvoltage cut-off- 14.4
- Undervoltage cut-off- 9.2V
- Thermal Protection
Certifications & Warranty:
- BIS Approved: Yes
- BIS Registration Number: R-84005630
- Warranty: 3 Years
Warranty Terms:
This battery pack comes with 3 year warranty from the date of purchase. Warranty is void if the pack/connector is physically damaged.
Applications:
- Small scale UPS Battery
- Battery for GPS Tracking – Vehicle Tracking – Asset Tracking
- Wifi Modem or Router Battery for backup
- 12V Remote CCTV Camera
- PSP
- Industrial Machines
- Emergency Lights
- Robotics and RC cars
- Music Players and Audio Systems
