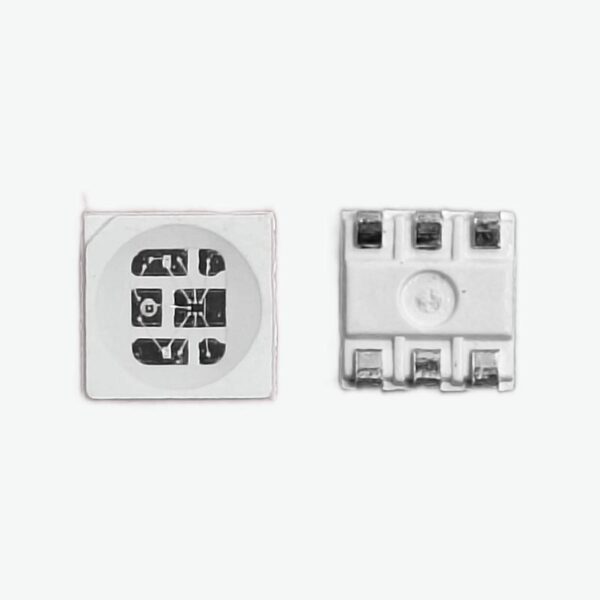

WS2812B SMD3535 Mini 6-Pin RGB SMD LED

The WS2812B SMD3535 Mini is a compact RGB LED with an integrated control IC, offering intelligent addressable control over a single data line. With its 6-pin SMD package, it’s ideal for compact and high-density lighting applications such as displays, wearables, and LED matrices.

Features of WS2812B SMD3535 Mini 6-Pin RGB SMD LED:

• Built-in control IC for addressable RGB lighting
• Compact 3535 SMD package for tight layouts
• Operates on 3.5V to 5.3V DC
• Single-wire communication protocol
• 24-bit color control (8-bit per channel: R, G, B)
• 256 brightness levels per color channel
• 6-pin design for stable SMD mounting
• Low power consumption and high brightness

Specifications of WS2812B SMD3535 Mini 6-Pin RGB SMD LED:

• Model: WS2812B SMD3535
• LED Type: RGB (Red, Green, Blue)
• Control: Intelligent addressable, single-wire
• Voltage: 3.5V – 5.3V DC
• Package: 3535 SMD
• Pins: 6
• Color Depth: 24-bit
• Mounting: Surface Mount (SMD)
• Dimensions: ~3.5mm × 3.5mm × 1.8mm

Package Includes:

1 × WS2812B SMD3535 Mini 6-Pin RGB SMD LED
