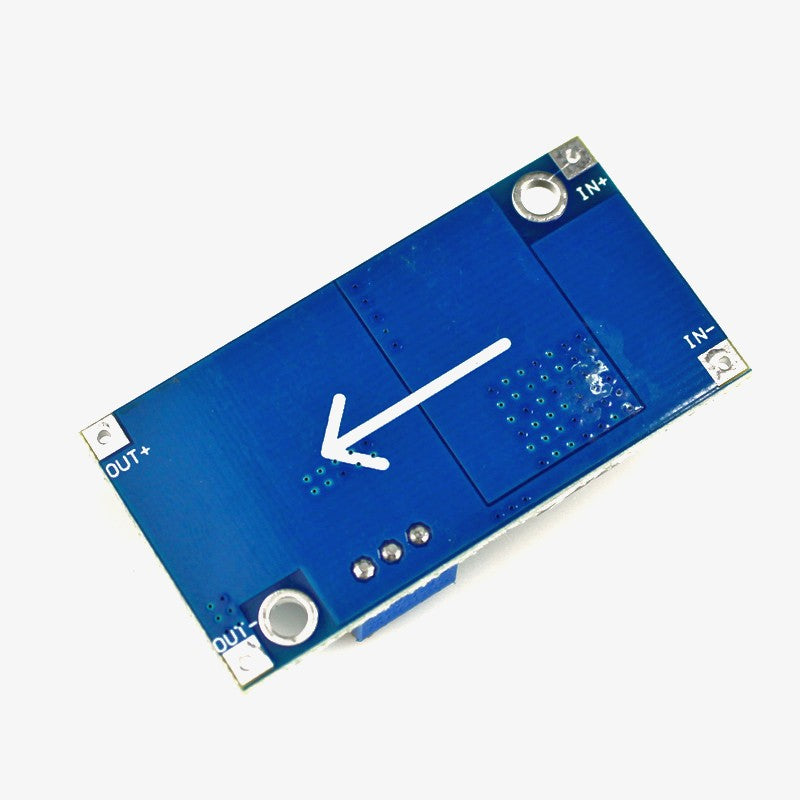

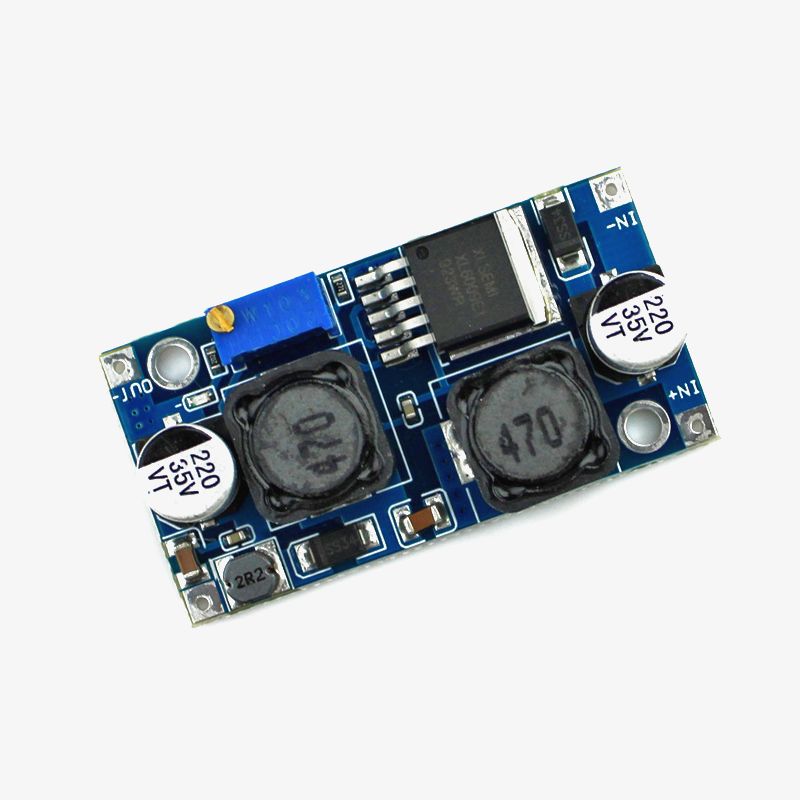

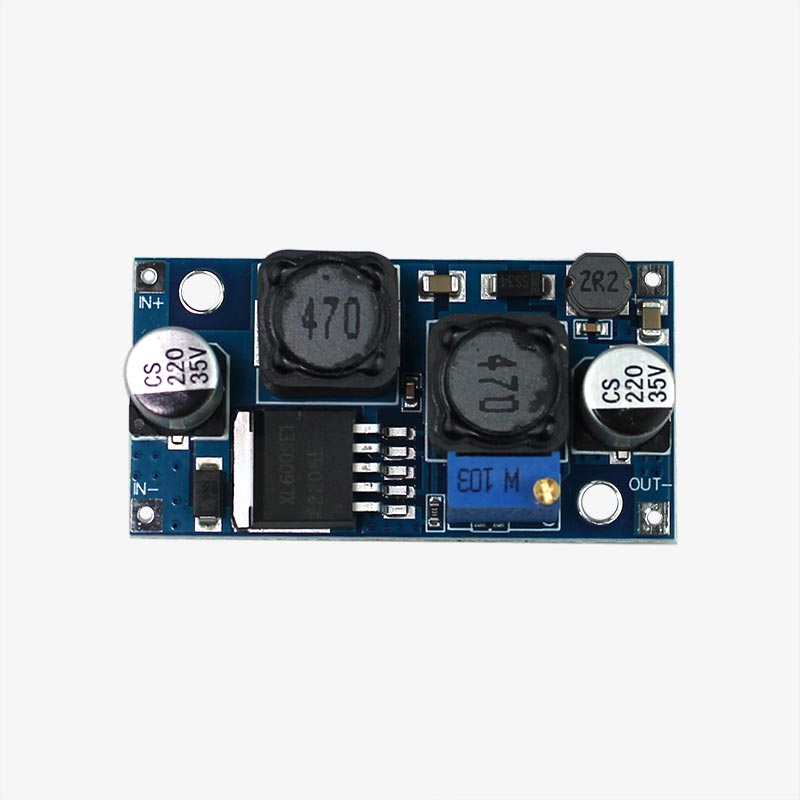

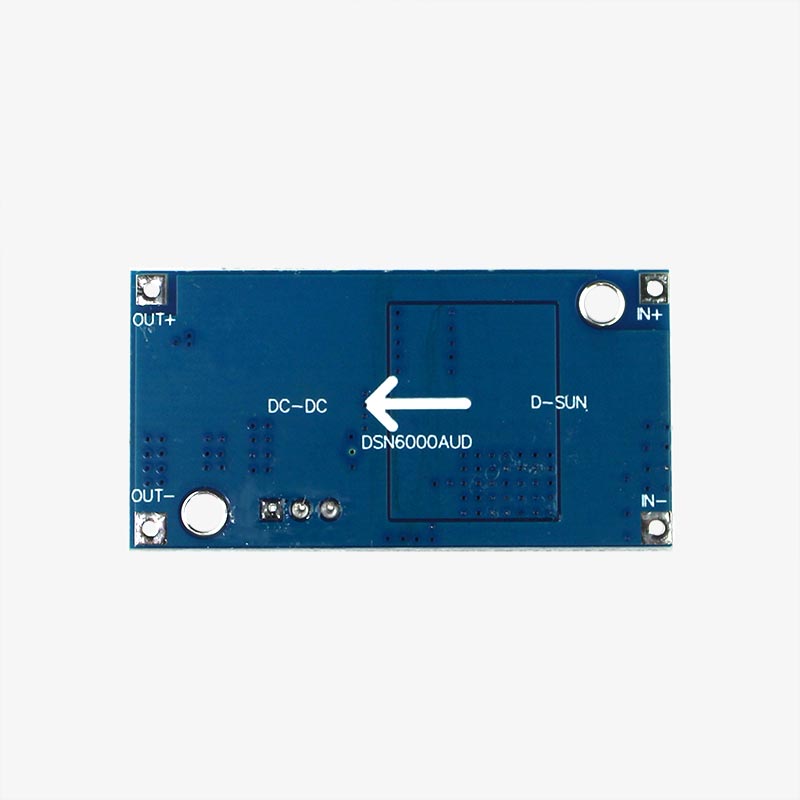

XL6009 Step Up Down Buck Boost Converter Module

The XL6009 Step Up Down module is one of the widely used module, where there is requirement of having a specific fixed output voltage, even when the input voltage is below or above the required output voltage.

This is an automatic Buck Boost Converter. And as a result the output voltage of the module can be fixed at specific voltage, and input can be higher or lower than the output voltage. The onboard variable resistor is used to change the output voltage.

XL6009 Buck Boost Converter Module Specifications:

• Automatic Buck Boost Converter
• Output Current: 4A
• Switching Frequency: 400 Khz
• Input Voltage: 3.8V to 32V
• Output Voltage: 1.25V to 35V
• Conversion Efficiency: <94%
• Non Isolated Buck Boost Converter

Applications:

• Solar Cell
• Car Regulator
• Wind Power

Package Includes: 1 x XL6009 Step Up Down Buck Boost Converter Module.
